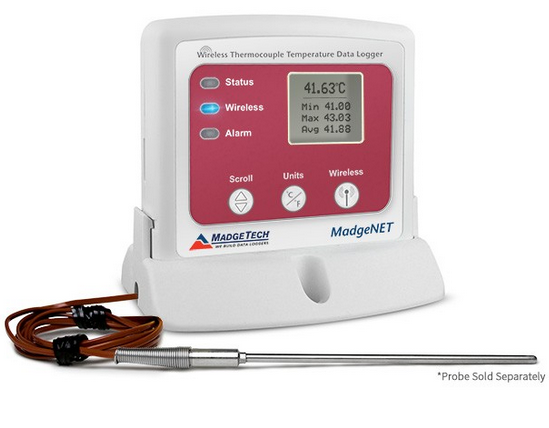

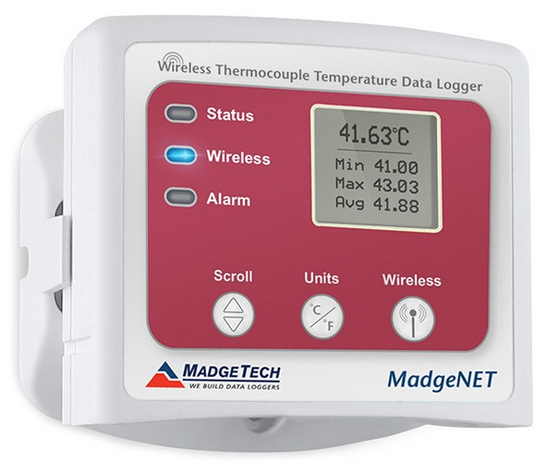

The RFTCTemp2000A is two-way wireless thermocouple based temperature data logger featuring a large LCD screen. This data logger is able to transmit up to 2000 feet maximum (outdoors unobstructed). The built-in memory also stores data internally for added security.
Ideal for measuring ambient as well as remote temperature, the RFTCTemp2000A features a built-in temperature sensor for cold junction compensation (CJC) as well as the option for an external thermocouple (not included). This logger accepts J, K, T, E, R, S, B, and N type thermocouples and is exemplary for use in the monitoring of vaccine and chemical storage as well as other perishable goods.
The convenient LCD display provides the current reading for both temperature channels. Minimum, maximum and average statistics are also provided for a convenient snapshot of the logged data.
An audible buzzer as well as LED alarm indicator instantly notifies users when the temperature exceeds the user specified alarm. Email and text message alarms can also be programmed to send through the MadgeTech software. The RFTCTemp2000A also features programmable trigger settings which programs the data logger to begin logging only once the user set temperature limit is surpassed.
TEMPERATURE
|
Internal Channel Temperature Sensor |
Internal Semiconductor |
|
Internal Channel Temperature Range |
-20 °C to +60 °C (-4 °F to +140 °F) |
|
Internal Channel Temperature Resolution |
0.1 °C (0.18 °F) |
|
Internal Channel Temperature Calibrated Accuracy |
±0.1 °C |
|
Remote Channel Temperature Sensor |
Thermocouple types: J, K, T, E, R, S, B, N |
|
Remote Channel Temperature Range |
Thermocouple dependent |
|
Remote Channel Temperature Resolution |
Thermocouple dependent |
|
Remote Channel Temperature Calibrated Accuracy |
Thermocouple dependent |
WIRELESS
|
RF Carrier Frequency |
2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|
Output Power |
+0 dBm typical |
|
Receiver Sensitivity |
-95 dBm typical |
|
Typical outdoors Line of sight |
Up to 2000 ft |
|
Typical Indoors line of sight |
Up to 500 ft |
GENERAL
|
Memory |
16,128 readings per channel |
|
Reading Rate |
1 reading every second up to 1 reading every 24 hours |
|
Baud Rate |
250,000 |
|
LED Indicators |
Green, Blue & Red |
|
Battery Life |
3 years typical at a 1 minute reading rate |
|
Material |
ABS plastic |
|
Dimensions |
3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
|
IP Rating |
IP22 |
|
Operating Environment |
-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
|
Required Interface Package |
RFC1000 |
|
Approvals |
US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
