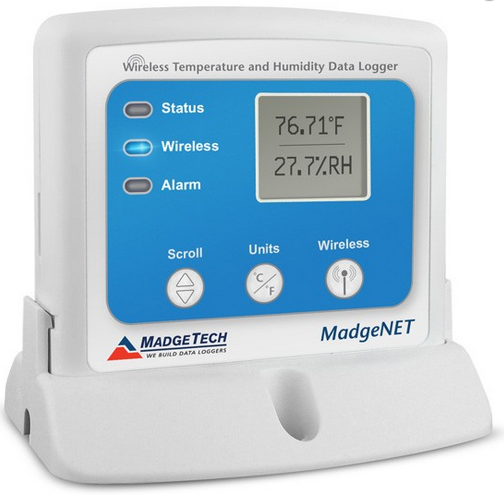

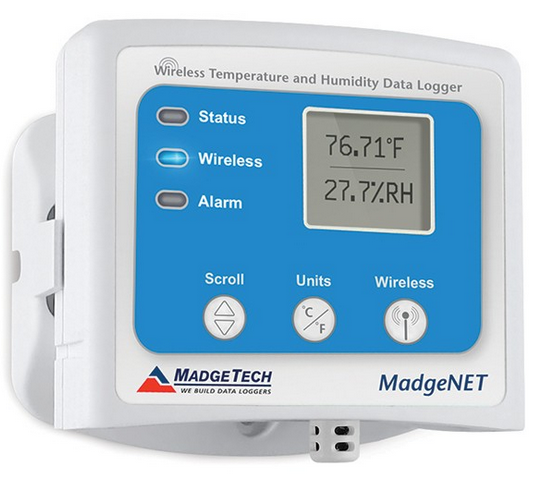

The RFRHTemp2000A is two-way Wireless temperature and humidity data logger with LCD. Transmits up to 2000 ft maximum (outdoors unobstructed). Built-in memory also stores data internally. This device is calibrated traceable to NIST and is available with a Calibration Certificate. The RFRHTemp2000A is ideal for both industrial or laboratory applications including supply chain storage facilities, incubator monitoring and HVAC studies. Designed with external humidity and RTD based temperature sensors, the device provides a fast response time for both parameters. For customer convenience, functions include starting, stopping and downloading from the device wirelessly using the RFC1000 wireless transceiver. This allows customers to quickly access data and spend less time maintaining the device. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals.
The digital display provides the current reading for both the humidity and temperature channels with minimum, maximum and average statistics accessible for a quick snapshot of the logged data. The RFRHTemp2000A features user programmable alarm settings for both temperature and humidity parameters. An audible buzzer and LED alarm indicator notifies users when the temperature or humidity is above or below the threshold set in the alarm. Email and text alarms can also be configured and sent from within the software, allowing users to be notified almost anywhere.
The RFRHTemp2000A can be used as a single, wireless data logging system, or it can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless data loggers and transceivers may be required). The RFRHTemp2000A utilizes the new MadgeTech Software. MadgeTech Data Logger Software is a powerful, analytic tool. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
TEMPERATURE
|
Internal Channel Temperature Sensor |
Resistance Temperature Detector (RTD) |
|
Internal Channel Temperature Range |
-20 °C to +60 °C (-4 °F to +140 °F) |
|
Internal Channel Temperature Resolution |
0.01 °C (0.018 °F) |
|
Internal Channel Temperature Calibrated Accuracy |
±0.5 °C |
HUMIDITY
|
Humidity Sensor |
Relative Humidity Sensor |
|
Humidity Range |
0 %RH to 95 %RH |
|
Humidity Resolution |
0.1 %RH |
|
Humidity Calibrated Accuracy |
±3.0 %RH, ±2.0 %RH typical @ 25 °C |
WIRELESS
|
RF Carrier Frequency |
2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|
RF Baud Rate |
250,000 |
|
Output Power |
+0 dBm typical |
|
Receiver Sensitivity |
-95 dBm typical |
|
Typical outdoors Line of sight |
Up to 2000 ft |
|
Typical Indoors line of sight |
Up to 500 ft |
GENERAL
|
Memory |
16,128 readings per channel |
|
Reading Rate |
1 reading every second up to 1 reading every 24 hours |
|
Baud Rate |
250,000 |
|
LED Indicators |
Green, Blue & Red |
|
Battery Life |
3 years typical at a 1 minute reading rate |
|
Material |
ABS plastic |
|
Dimensions |
3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
|
IP Rating |
IP22 |
|
Operating Environment |
-20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing |
|
Required Interface Package |
RFC1000 |
|
Approvals |
US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
