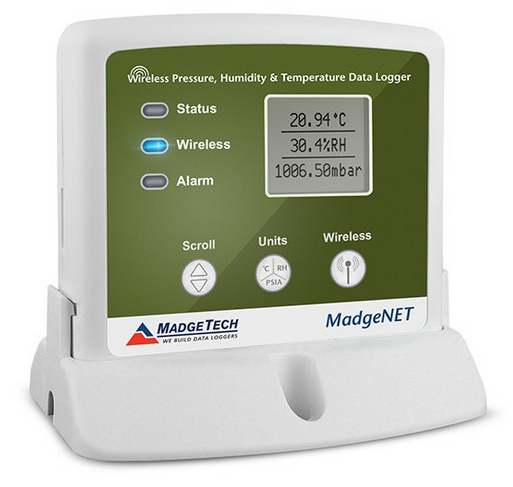

RFPRHTemp2000A Merilni sistem za pritisk, vlago in temperaturo (RFPRHT2000A)

  • RFPRHTemp2000A Merilni sistem za pritisk, vlago in temperaturo
546,56 €
Cena brez DDV: 448,00 € (DDV: 22,00 %)

The RFPRHTemp2000A is a wireless data logger that measures and records ambient pressure, humidity and temperature. This dynamic data logger is ideal for use in applications such as monitoring weather data, measuring barometric pressure in high-rise buildings or monitoring warehouse environments that contain sensitive material. Clinical laboratories and clean rooms can utilize the RFPRHTemp2000A to measure and maintain critical pressure, humidity or temperature levels, all with one device.

The RFPRHTemp2000A features a large LCD screen, providing instant access to current readings, as well as minimum, maximum and average statistics. Statistics can be reset directly on the keypad of the device, allowing customers to keep track of statistics over certain time periods. The RFPRHTemp2000A also features configurable alarms, battery life indicator and wall or surface mounting options.

The RFPRHTemp2000A can be used as a standalone data logger, or used in conjunction with the RFC1000 wireless transceiver to transmit data back to a central PC in real time. The RFPRHTemp2000A can transmit up to 500 feet (line of sight) to the RFC1000 transceiver. Multiple RFC1000s can be used as repeaters to allow the data to travel further distances.

As with all MadgeTech 2000A wireless data loggers, the RFPRHTemp2000A can be used as a single wireless data logging system, or can be expanded to a large scale system, which can include hundreds of data loggers. The RFPRHTemp2000A utilizes the latest MadgeTech 4 Software. Downloaded data can be viewed in both graphical and tabular formats, as well as summary and statistics views for further analysis. The software features data annotation, digital calibration, as well as the capability to be exported to Excel for further calculations.

Količina



TEMPERATURE

Internal Channel Temperature Sensor

Resistance Temperature Detector (RTD)

Internal Channel Temperature Range

-20 °C to +60 °C (-4 °F to +140 °F)

Internal Channel Temperature Resolution

0.01 °C (0.018 °F)

Internal Channel Temperature Calibrated Accuracy

±0.5 °C (+5 °C to +55 °C)

HUMIDITY

Humidity Sensor

Relative Humidity Sensor

Humidity Range

0 %RH to 95 %RH

Humidity Resolution

0.1 %RH

Humidity Calibrated Accuracy

±3.0 %RH, ±2.0 %RH typical @ 25 °C (10 to 90 %RH; +5 °C to +55 °C)

PRESSURE

Pressure Sensor

Silicon

Pressure Range

250 mbar to 1300 mbar

Pressure Resolution

0.02 mbar

Pressure Calibrated Accuracy

10 mbar (+5 °C to +55 °C)

WIRELESS

RF Baud Rate

250,000

Output Power

+0 dBm typical

Receiver Sensitivity

-95 dBm typical

Typical outdoors Line of sight

Up to 2000 ft

Typical Indoors line of sight

Up to 500 ft

GENERAL

Memory

10,752 readings per channel

Reading Rate

1 reading every second up to 1 reading every 24 hours

Baud Rate

250,000

LED Indicators

Green, Blue & Red

Battery Life

5 years typical at a 15 minute reading rate

Material

ABS plastic

Dimensions

3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only

IP Rating

IP22

Operating Environment

-20 °C to +60 °C (-4 °F to +140 °F),
0 %RH to 95 %RH non-condensing,
0.002 PSIA to 100 PSIA

Required Interface Package

RFC1000

Approvals

US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
