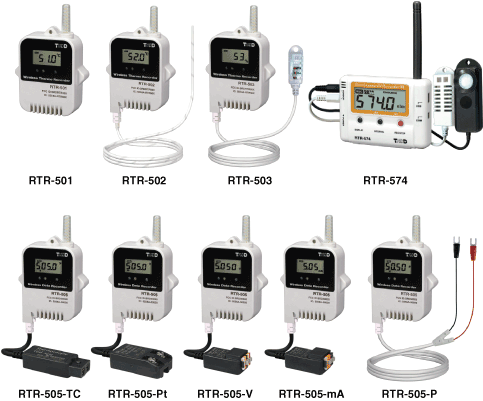

Funkcionalnost
Merilniki delujejo lahko kot dataloggerji ali pa direktno pošiljajo podatke spejemni enoti prek kratkih radijskih valov - brezžično. Njihov domet je 150 m, za podaljšanje pa lahko uporabimo repetitor. Prenos podatkov je samodejen glede na nastavitve oz. ko je sprejemik v dosegu. Vsi merilniki imajo 16.000 spominskih točk.

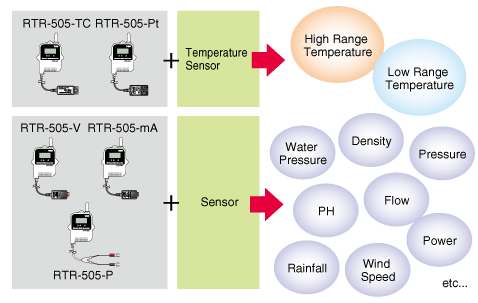

RTR-505-P
is a Data Logger designed to record the changes in pulse count for contact signals (such as switches, relays, and thermostats) and Lo/Hi voltage signals that occur during a set recording interval. It is also capable of recording the total pulse count from the start of recording.
| FCC model | RTR-505-TC/ 505-TCL |
RTR-505-Pt/ 505-PtL |
RTR-505-V/ 505-VL |
RTR-505-mA/ 505-mAL |
RTR-505-P/ 505-PL |
| Measurement Items (*1) | Temperature | Voltage | 4-20mA | Pulse | |
| Recording Intervals | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. / 1, 2, 5, 10, 15, 20, 30, 60 min. | ||||
| Logging Capacity | 16,000 readings | ||||
| Recording Modes | Endless: Upon reaching logging capacity, the oldest data is overwritten and recording continues. One Time: Recording automatically stops when logging capacity is full. * When using RTR-500NW or RTR-500AW as a Base Unit, only "Endless" can be selected. |
||||
| LCD Displayed Items | Measurement, Recording Status, Recording Mode, Battery Life Warning, Unit of Measurement, Full (Logging Capacity FULL), Sensor Unconnected, Input Module Unconnected, Measurement Range Exceeded, Display Range Exceeded) | ||||
| Power | Lithium Battery LS14250 (*2) x 1 / Lithium Battery CR2 x 1 For L type: Large Capacity Battery Adaptor Kit (RTR-500B1 /sold separately) External Power Adaptor Kit (RTR-500A1 /sold separately) |
||||
| Battery Life (*3) | About 10 months (for temperature measurement) About 4 years (for temperature measurement with L type) |
||||
| Radio Standard Specifications | FCC Part15 Section247 / IC RSS-210 (Frequency Range: 902 to 928MHz) |
||||
| Wireless Transmission Range | About 150 meters (500ft) if direct and unobstructed | ||||
| Communication Interfaces | Wireless Communication / Optical Communication | ||||
| Communication Time | When downloading one Remote Unit at full logging capacity Wireless Communication: about 2 min. Optical Communication: about 160 sec. |
||||
| Waterproof Capacity | Splash proof (rated for use in daily life) (*4) | ||||

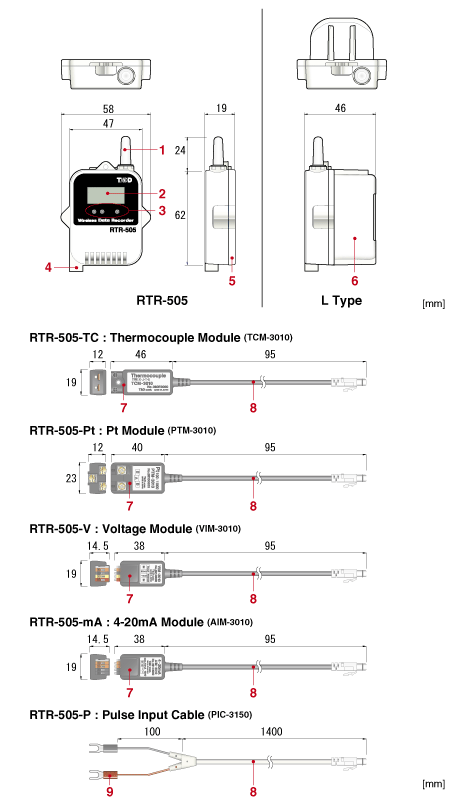

| Dimensions | H62mm x W 47mm x D19mm (excluding protrusions and sensor) L type: D 46.5mm (with Large Capacity Battery Pack) Antenna length: 24mm |
||||
| Weight | About 55g (including battery / excluding Input Module) L Type: about 109g (with Large Capacity Battery Pack) |
||||
| Operating Environment | - 30 to 80°C (*5) (The operating temperature range and measurement range is -40 to 80°C but wireless communication cannot occur in an environment of less than -30°C.) |
||||
| Other | A Base Unit is required separately. | ||||
