Funkcionalnost
Merilniki delujejo lahko kot dataloggerji ali pa direktno pošiljajo podatke spejemni enoti prek kratkih radijskih valov - brezžično. Njihov domet je 150 m, za podaljšanje pa lahko uporabimo repetitor. Prenos podatkov je samodejen glede na nastavitve oz. ko je sprejemik v dosegu. Vsi merilniki imajo 16.000 spominskih točk.

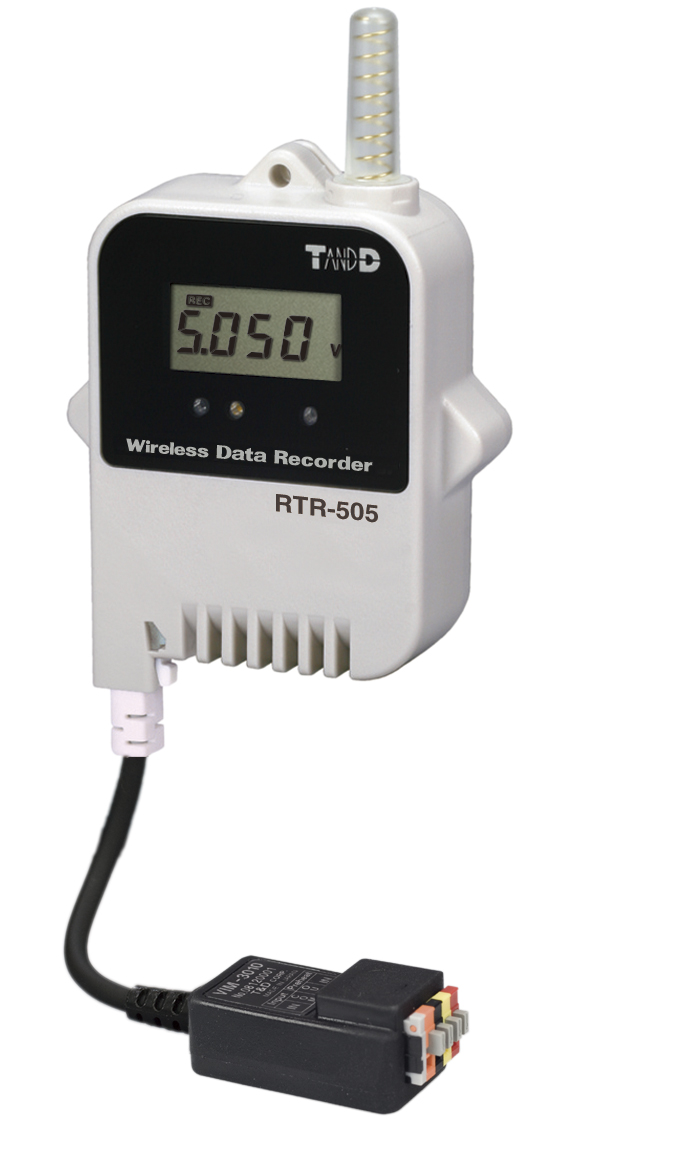

Meri in beleži napetost iz različnih vrst senzorjev in merilnih naprav. Na voljo sta dva tipa beleženja: trenutni ali povpprečni! Merilnik je opremljen z prednapetostno zaščito.
| FCC model |
RTR-505-TC/
505-TCLRTR-505-Pt/
505-PtLRTR-505-V/
505-VLRTR-505-mA/
505-mALRTR-505-P/
505-PL
Measurement Items (*1)TemperatureVoltage4-20mAPulse
Recording Intervals Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. / 1, 2, 5, 10, 15, 20, 30, 60 min.
Logging Capacity 16,000 readings
Recording Modes Endless: Upon reaching logging capacity, the oldest data is overwritten and recording continues.
One Time: Recording automatically stops when logging capacity is full.
* When using RTR-500NW or RTR-500AW as a Base Unit, only "Endless" can be selected.
LCD Displayed Items Measurement, Recording Status, Recording Mode, Battery Life Warning, Unit of Measurement, Full (Logging Capacity FULL), Sensor Unconnected, Input Module Unconnected, Measurement Range Exceeded, Display Range Exceeded)
Power Lithium Battery LS14250 (*2) x 1 / Lithium Battery CR2 x 1
For L type: Large Capacity Battery Adaptor Kit (RTR-500B1 /sold separately)
External Power Adaptor Kit (RTR-500A1 /sold separately)
Battery Life (*3) About 10 months (for temperature measurement)
About 4 years (for temperature measurement with L type)
Radio Standard Specifications FCC Part15 Section247 / IC RSS-210
(Frequency Range: 902 to 928MHz)
Wireless Transmission Range About 150 meters (500ft) if direct and unobstructed
Communication Interfaces Wireless Communication / Optical Communication
Communication Time When downloading one Remote Unit at full logging capacity
Wireless Communication: about 2 min.
Optical Communication: about 160 sec.
Waterproof Capacity Splash proof (rated for use in daily life) (*4)
Dimensions H62mm x W 47mm x D19mm (excluding protrusions and sensor)
L type: D 46.5mm (with Large Capacity Battery Pack)
Antenna length: 24mm
Weight About 55g (including battery / excluding Input Module)
L Type: about 109g (with Large Capacity Battery Pack)
Operating Environment- 30 to 80°C (*5)
(The operating temperature range and measurement range is -40 to 80°C but wireless communication cannot occur in an environment of less than -30°C.)
Other A Base Unit is required separately.
