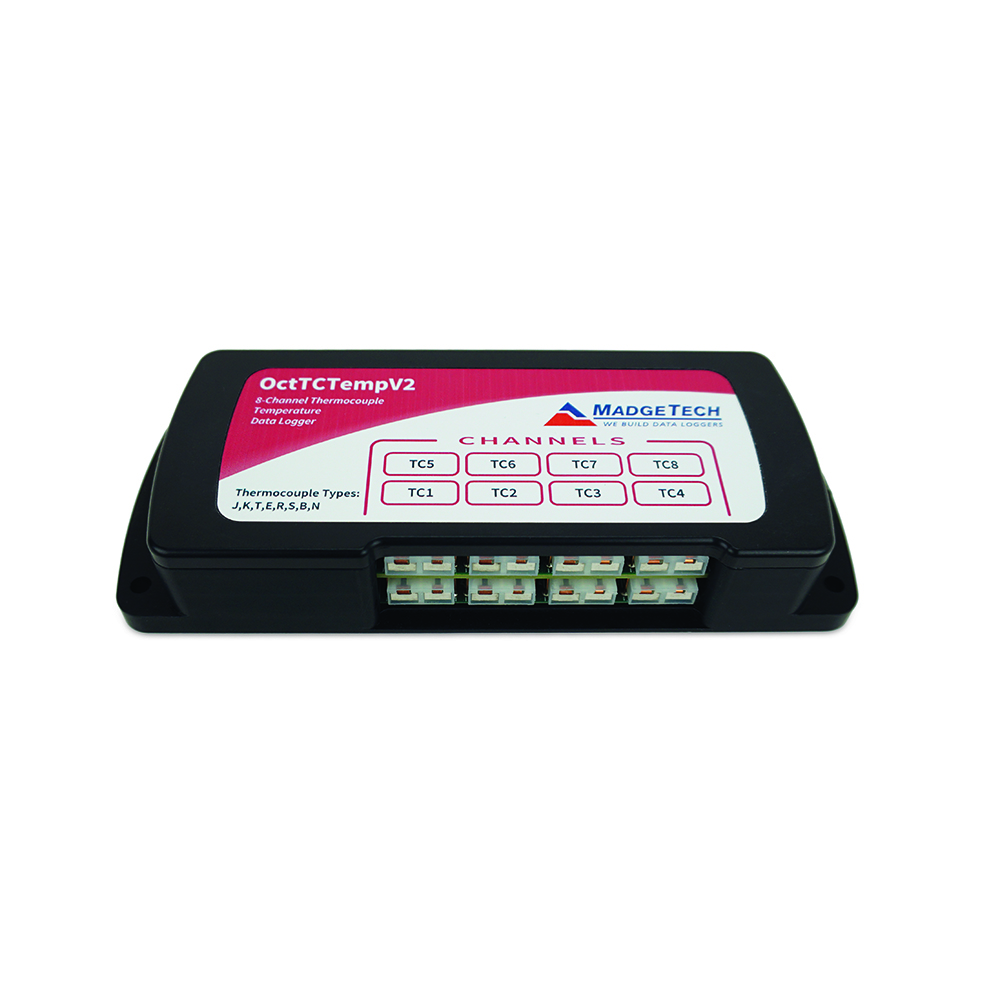

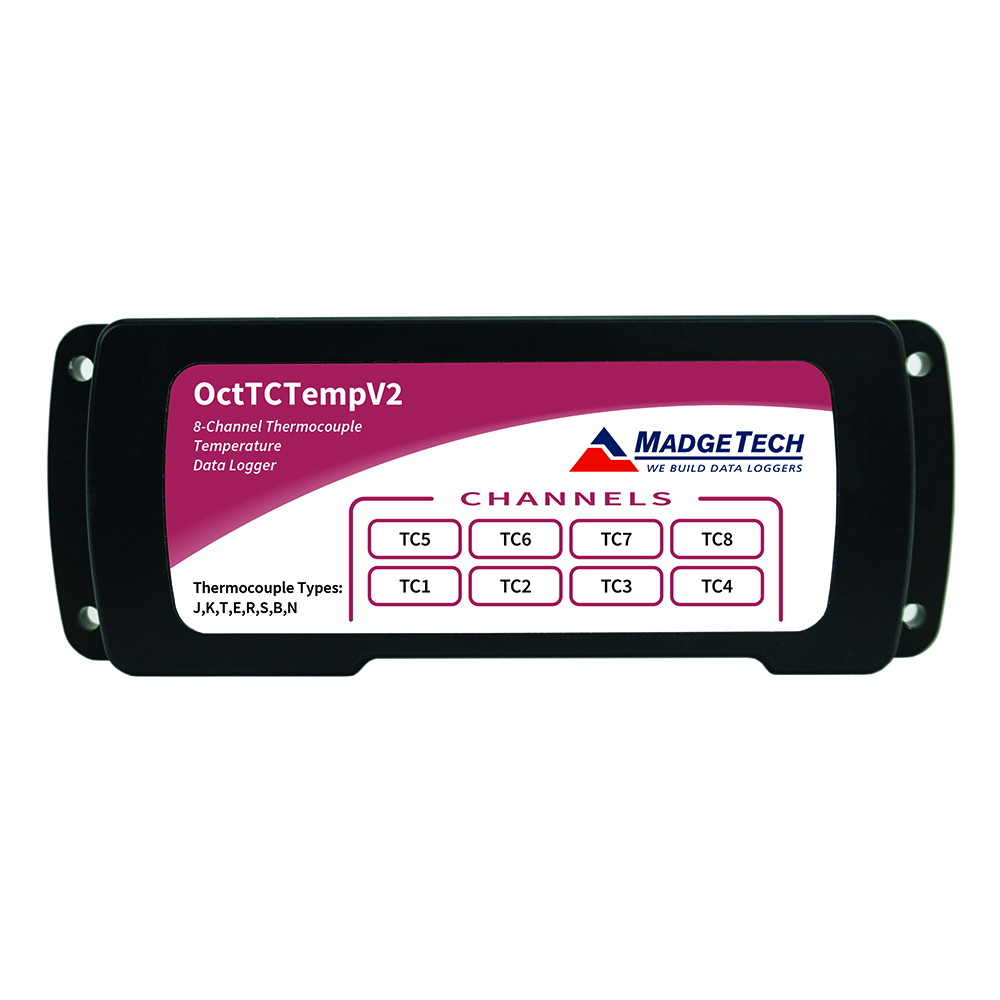

The OctTCTempV2 is an 8-channel, thermocouple-based temperature data logger with mini plug connectors and wall mounted power adapter.
This device is adaptable to a variety of thermocouples and can measure and record up to 130,944 readings. To maximize memory capacity, users can enable or disable channels. The OctTCTempV2 features individual cold junction compensation for each channel, providing increased accuracy and response time. If a probe is removed or severed during logging, the software automatically annotates the data.
The OctTCTempV2 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Thermocouple plugs/probes sold separately.
General
| Memory | 130,944 readings (all channels enabled) |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 8 Internal & 8 Remote |
| Battery Life | 18 months typical |
| Material | Anodized aluminum |
| Dimensions | 7.2 in x 2.7 in x 1.3 in (184 mm x 69 mm x 32 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH, non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
Temperature
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | ±0.5 °C (0 °C to 50 °C) |
| Internal Channel Temperature Calibrated Accuracy | ±0.1 °C (-20 °C to +60 °C) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
